Exchange, Routing-keys and Queues in RabbitMQ
helyOS and rabbitMQ

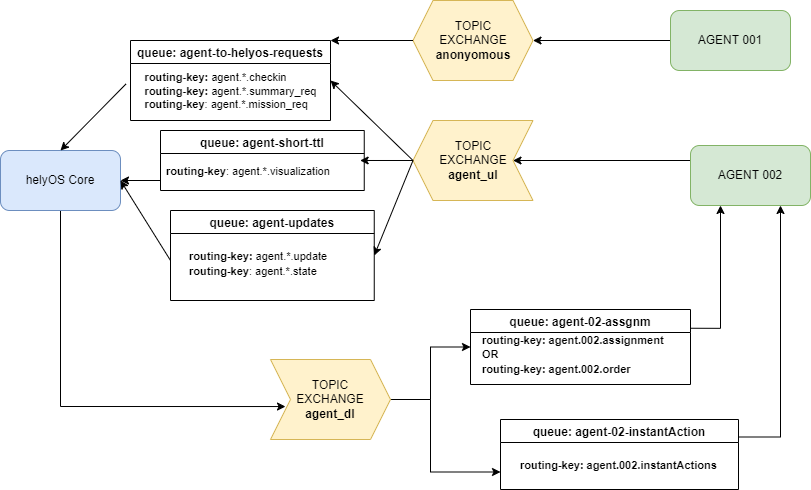

Thanks to the RabbitMQ routing features, any RabbitMQ client subscribing to the topic exchange agent_ul can get the messages filtered by routing-keys.
The agents will address their messages to the following routing-keys:
agent.{uuid}.checkin : used only for check-in data.
agent.{uuid}.update : messages related to updates of agent properties. e.g., vehicle name, geometry data.
agent.{uuid}.visualization : messages reporting the positioning and sensor data.
agent.{uuid}.state : messages reporting the assignment status and agent state.
agent.{uuid}.mission_req : messages to request missions from helyOS.
agent.{uuid}.factsheet : (included for compatibility with VDA5050) messages to report geometry.
The agents will receive messages from the following routing-keys:
agent.{uuid}.assignment or agent.{uuid}.order: receive assignments.
agent.{uuid}.instantActions : receive instant action commands from helyOS core or any other RabbitMQ client.
Routing-keys can be converted to topics for MQTT clients. Check the table below.
All messages exchanged between helyOS and the agents include the following common fields:
type: string, ex: “checkin”, “assignment”, “cancel”, etc..
uuid: string, the identification of the agent the message is about.
body: JSON object.
The additional field metadata is present for some messages.
The body field will be specific for each message type. The easiest way to communicate to helyOS is to use the agent SDK connector methods: publish_general_updates, publish_states and publish_sensors.
Ref: Documentation and Examples
Code Examples
You can connect an agent to helyOS via any RabbitMQ or MQTT client using Python, Java, .Net, Ruby, JavaScript, Go, C and C++. Here, we bring some examples of connection using Pyhton clients.
AMQP
import pika
from my_agent import sensor_json_str, properties_json_str, states_json_str, mission_request_json_str
from my_callbacks import ia_callback, as_callback
# connect to RabbitMQ
hostname ='rabbitmq.server.de'
username = "134069fc5-fdgs-434b-b87e-f19c5435113"
UPLINK = "xchange_helyos.agents.ul"; DOWNLINK = "xchange_helyos.agents.dl";
credentials = pika.PlainCredentials(username, 'secret_passwd')
sender_validation = pika.BasicProperties(user_id = username)
parameters = pika.ConnectionParameters(hostname, 5672,credentials=credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
# publish sensors and position - can be performed up to 1000 Hz
channel.basic_publish(UPLINK,"agent.134069fc5-fdgs-434b-b87e-f19c5435113.visualization", sensor_json_str, sender_validation)
# update propeties as geometry and position - can be performed up to 10 Hz
channel.basic_publish(UPLINK,"agent.134069fc5-fdgs-434b-b87e-f19c5435113.update", properties_json_str, sender_validation)
# update agent and assignment status - must be performed immediately when the status change. Up to 2 Hz
channel.basic_publish(UPLINK,"agent.134069fc5-fdgs-434b-b87e-f19c5435113.state", states_json_str ,sender_validation)
# request a mission to helyOS
channel.basic_publish(UPLINK,"agent.134069fc5-fdgs-434b-b87e-f19c5435113.mission", mission_request_json_str ,sender_validation)
# receive instant actions
channel.queue_declare(queue='ia_queue')
channel.queue_bind('ia_queue', DOWNLINK,"agent.134069fc5-fdgs-434b-b87e-f19c5435113.instantActions")
channel.basic_consume('ia_queue', auto_ack=True, on_message_callback=ia_callback)
# receive order or assignments
channel.queue_declare(queue='as_queue')
channel.queue_bind('as_queue', DOWNLINK, "agent.134069fc5-fdgs-434b-b87e-f19c5435113.assignment") # or ... .order
channel.basic_consume('as_queue', auto_ack=True, on_message_callback=as_callback)
channel.start_consuming()
Tapping into the agent’s data stream
import pika, json
# connect to RabbitMQ
hostname ='rabbitmq.server.de'
username = "assistant-3432-434b-b87e-ds3245323"
UPLINK = "xchange_helyos.agents.ul"
credentials = pika.PlainCredentials(username, 'secret_passwd')
parameters = pika.ConnectionParameters(hostname, 5672,credentials=credentials)
connection = pika.BlockingConnection(parameters)
channel = connection.channel()
def parse_any_helyos_agent_message(raw_str):
# get message string
object = json.loads(raw_str)
message_str = object['message']
message_signature = object['signature']
# parse message string
message = json.loads(message_str)
print(f"message type: {message['type']}")
print(f"message uuid: {message['uuid']}")
print(f"message body: {message['body']}")
print(f"message metadata: {message.get('metadata', None)}")
# Tapping into the agent's data stream - VISUALIZATION
def tap_visualization_callback(ch, method, properties, raw_str):
print("visualization data received")
parse_any_helyos_agent_message(raw_str)
channel.queue_declare(queue='visualization_queue')
channel.queue_bind('visualization_queue', UPLINK, "agent.*.visualization")
channel.basic_consume('visualization_queue', auto_ack=True, on_message_callback=tap_visualization_callback)
# Tapping into the agent's data stream - STATE
def tap_state_callback(ch, method, properties, raw_str):
print("state data received")
parse_any_helyos_agent_message(raw_str)
channel.queue_declare(queue='state_queue')
channel.queue_bind('state_queue', UPLINK, "agent.*.state")
channel.basic_consume('state_queue', auto_ack=True, on_message_callback=tap_state_callback)
# Tapping into the agent's data stream - UPDATE
def tap_update_callback(ch, method, properties, raw_str):
print("update data received")
parse_any_helyos_agent_message(raw_str)
channel.queue_declare(queue='update_queue')
channel.queue_bind('update_queue', UPLINK, "agent.*.update")
channel.basic_consume('update_queue', auto_ack=True, on_message_callback=tap_update_callback)
channel.start_consuming()
MQTT
import paho.mqtt.client as mqtt
# connect to RabbitMQ
hostname ='rabbitmq.server.de'
username = "134069fc5-fdgs-434b-b87e-f19c5435113"
client = mqtt.Client()
client.username_pw_set(username, 'secret_passwd')
client.connect(rabbitmq_host, 1886)
# publish sensors and position - can be performed up to 1000 Hz
client.publish("agent/134069fc5-fdgs-434b-b87e-f19c5435113/visualization", sensor_json)
# update propeties as geometry and position - can be performed up to 10 Hz
client.publish("agent/134069fc5-fdgs-434b-b87e-f19c5435113/update", propeties_json)
# update agent and assignment status - must be performed immediately when the status change. Up to 2 Hz
client.publish("agent/134069fc5-fdgs-434b-b87e-f19c5435113/state", agent_assign_states_json)
# receive instant actions
client.subscribe("agent/134069fc5-fdgs-434b-b87e-f19c5435113/instantActions")
client.message_callback_add("agent/134069fc5-fdgs-434b-b87e-f19c5435113/instantActions",ia_callback)
# receive order or assignments
client.subscribe("agent/134069fc5-fdgs-434b-b87e-f19c5435113/assignment") # or ../order
client.message_callback_add("agent/134069fc5-fdgs-434b-b87e-f19c5435113/assignment",as_callback)
client.loop_start()
These codes can be simplified by using the helyos-agent-sdk. See examples also for AMQP and MQTT agents: https://fraunhoferivi.github.io/helyOS-agent-sdk/build/html/examples/index.html
Check in agent in helyOS
To receive assignments from helyOS, the agent must perform a procedure called “check-in”.
In the check-in procedure, the agent will
Connect to RabbitMQ and send its identification data.
If the agent is connected as anonymous and possess the helyOS registration token, a new username and password will be automatically created.
Create a temporary queue to receive the check-in response.
CheckinCommandMessage {
type: "checkin";
uuid: string;
body: {
yard_uid: string; // yard the agent is checking in.
status: string;
pose: { x:number, y:number, z:number, orientations:number[]};
type?: string;
name?: string;
data_format?: string;
public_key?: string;
geometry?: AnyDataFormat;
factsheet?: AnyDataFormat
}
}
geometry: JSON informing the physical geometry data of the vehicle.
yard_uid: Unique identifier of the yard as registered in the dashboard.
helyOS will respond with the following data:
CheckinResponseMessage {
type: "checkin";
uuid: string;
body: {
agentId: number; // agent database id number
yard_uid: string; // yard the agent is checking in.
status: string;
map: { uid:string,
origin:{lat:number, lon:number, alt:number},
map_objects: MapObjects[]
};
rbmq_username: string;
response_code: string;
helyos_public_key: string;
ca_certificate: string; // RabbitMQ server certificate for SSL connection
rbmq_password?: string; // When agent account does not exist in the RabbitMQ server.
password_encrypted? boolean
}
}
type = “check in”.
map: JSON with the map information from yard.
rbmq_username: RabbitMQ account to be used by this agent.
rbmq_password: RabbitMQ password, only used for anonymous check-in.
password_encrypted: If true, the rbmq_password field is encrypted with the agent public key.
Check in using python code:
def checkin_pseudo_code(username, password):
# step 1 - connect
temporary_connection = connect_rabbitmq(rbmq_host, username, password)
gest_channel = temporary_connection.channel()
# step 2 - create a queue only to receive the check-in response
checkin_response_queue = gest_channel.queue_declare(queue="")
# step 3 - publish the check-in request
uuid = "y4df7293-5aab-46e2-bf6b"
publish_in_checkin_exchange_topic(yard_id=1,
uuid: uuid,
routing_key: f"agent-{uuid}-checkin,
status="free",
agent_metadata=data,
reply_to= checkin_response_queue)
# step 4 - start to consume checkin_response_queue and get the response data
if username == 'anonymous':
new_username, new_password, yard_data = listen_checkin_response(checkin_response_queue)
helyos_connection = connect_rabbitmq(rbmq_host, new_username, new_password)
else:
_, _, yard_data = listen_checkin_response(checkin_response_queue)
helyos_connection = connect_rabbitmq(rbmq_host, username, password)
return helyos_connection, yard_data
The similar code using helyos-agent-sdk python package:
from helyos_agent_sdk import HelyOSClient, AgentConnector
helyOS_client = HelyOSClient(rbmq_host,rbmq_port, uuid="y4df7293-5aab-46e2-bf6b")
if username!='anonymous':
helyos_client.connect(username, password)
helyOS_client.perform_checkin(yard_uid='1', agent_data=data, status="free")
helyOS_client.get_checkin_result()
helyos_connection = heylOS_client.connection
The helyOS-agent-sdk has many other methods to send and receive data from helyOS core in the correct data format. Check the documentation at https://fraunhoferivi.github.io/helyOS-agent-sdk/build/html/index.html.
Data Flow between helyOS and Agents
Only if the agent’s uuid is registered in the helyOS database, the agent can exchange messages with helyOS to report its status and to perform the assignments.

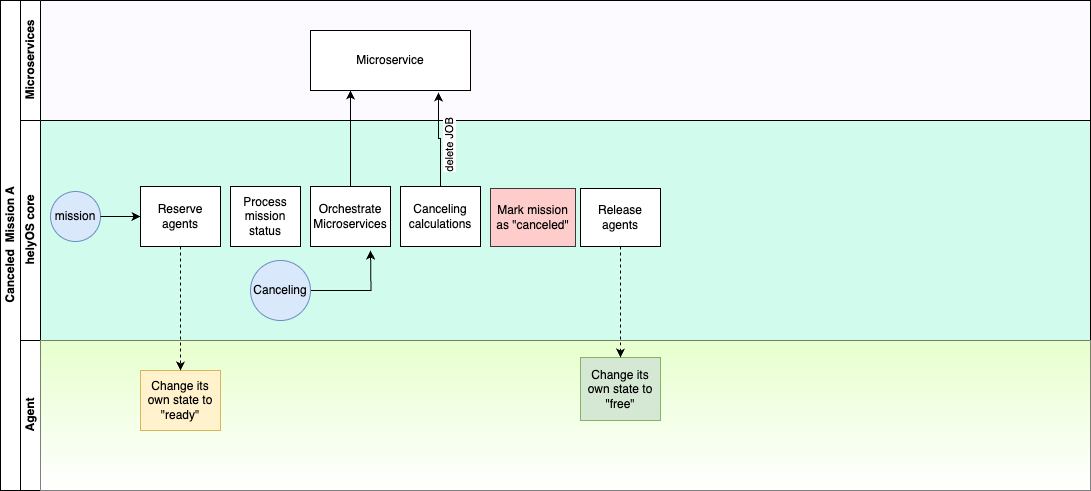

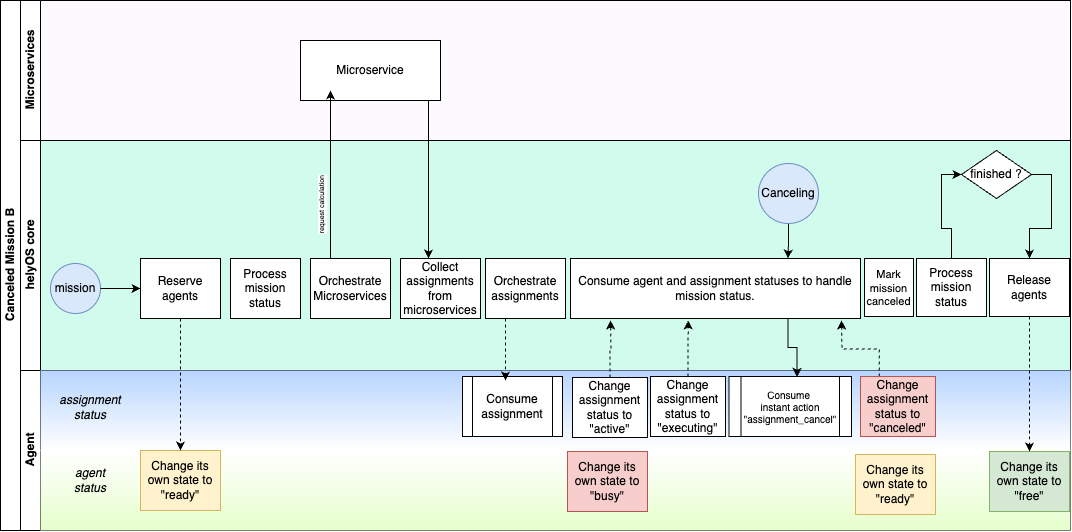

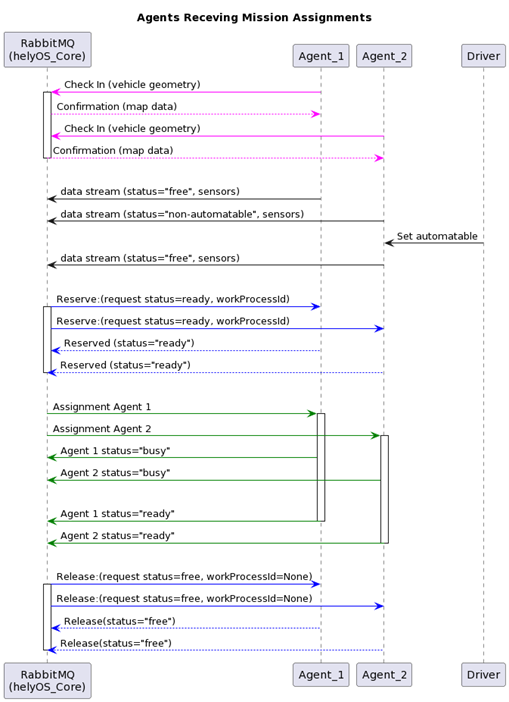

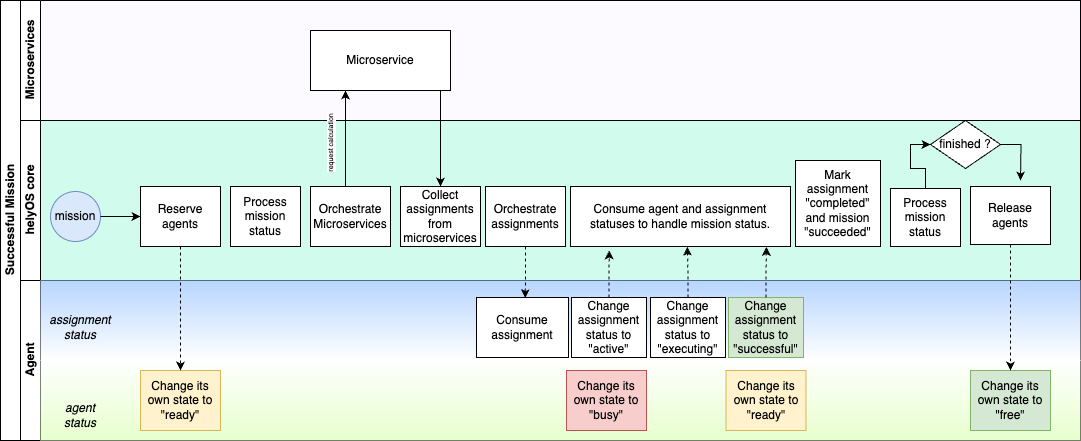

The process of agents receiving mission assignments
helyOS Reserves Agent for Mission
Before processing a mission request, helyOS core will reserve the required agent(s). This is done via the routing key, agent.{uiid}.instantActions. helyOS requests the agent to be in “ready” status (status=”ready” and reserved=True). During the assignment, the agent’s status changes to “busy”. After the assignment is complete, the agent updates its status from “busy” to “ready”. At this point, helyOS may release the agent, depending on the presence of any further assignments in that mission. The release message is also delivered via instant actions.
The agent reservation is important because:
Mission calculations can require considerable computational power and take several seconds. Therefore, the agent must remain available during this period and not be used by other tasks.
In some missions, multiple agents may need to perform sequential assignments. In such cases, one agent must be reserved to wait for the completion of assignments from another agent.
Some missions require unique tools or devices that may not be present at the required agent. Thus, ensuring the readiness of both the agent and its hardware for the specific assignment is important.
In the interest of security, heavy agents, even those set to automatable mode, should communicate their upcoming assignment visually or soundly to their surroundings. This feature allows anyone nearby to abort the assignment before it starts if deemed necessary.
However, in some scenarios, agents should not be blocked waiting for a mission calculation. Instead, they should either fail the mission if they become suddenly unavailable after the calculation is done, or queue the assignment to be executed later. For those scenarios, the developer must uncheck the option Acknowledge reservation on the Register Agent tab in the dashboard.
helyOS Sends Assignment to Agent
As earlier mentioned, the assignments usually originated from the microservices. That is, the microservices translate the requested mission in assignments: Assignment. The microservices return the assignments to helyOS core, and helyOS distributes them to the agents. This is done via the routing key agent.{uiid}.assignments.
If the option Acknowledge reservation is checked, helyOS will send an assignment to the agent only if the agent status is “ready”.
AssignmentCommandMessage {
type: "assignment_execution";
uuid: string;
body: AnyDataFormat;
metadata: {
id: number, // assignment id.
workprocess_id: number, // mission id.
yard_id: number,
status: string,
context?: { dependencies: PreviousAssignments[]}
}
}
An easy-to-implement security mechanism is to check the identity of the assignment sender. This is an embedded feature of RabbitMQ. For example, if you want your agent to only execute assignments from helyOS core, you can filter assignments originated from the RabbitMQ account “helyos_core”.
Agent Requests a Mission
In addition to client apps, agents can also request missions from helyOS core. This feature is useful for situations such as the following:
A smart camera identify a new obstacle and requests a mission to update helyOS map by sending the position of a new obstacle.
A tractor requests a mission to ask assistance of another agent for executing a task.
A truck finds itself obstructed by a fixed obstacle, the truck requests a mission from helyOS to calculate a path away from this deadlock situation, or to contact a teleoperated driving service.
